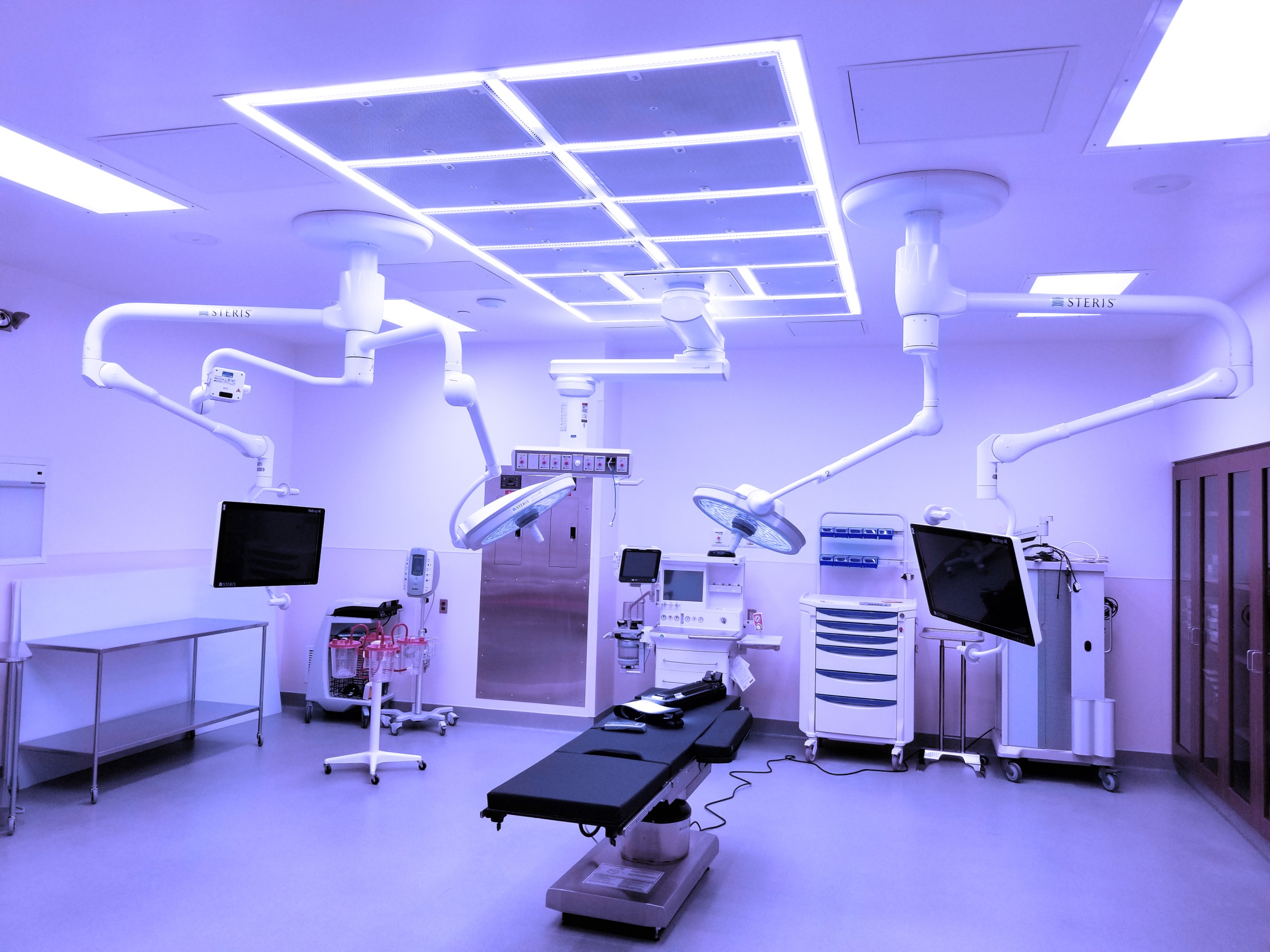

AirFRAME ceiling system attached to building structure

AirFRAME

Fully-integrated modular ceiling systems for healthcare

LEARN MORE
A layout of an AirFRAME system in a 2 by 3 array

AF23

AirFRAME configured in a 2 x 3 array

Room volume, 20 ACH: 3,570-4,980 ft³ [101.5-141 m³]
Room volume, 25 ACH: 2,850-3,990 ft³ [81.0-112.5 m³]
Diffuser array size: 92” x 78” [2,337 x 1,981 mm]
System outer dims with optional mounts: 148” x 134” [3,759 x 3,407 mm]
CRI: 80
Color temperature: 4,000K
A layout of an AirFRAME system in a 3 by 2 array

AF32

AirFRAME configured in a 3 x 2 array

Room volume, 20 ACH: 3,570-4,980 ft³ [101.5-141 m³]
Room volume, 25 ACH: 2,850-3,990 ft³ [81.0-112.5 m³]
Diffuser array size: 116” x 62” [2,946 x 1,575 mm]
System outer dims with optional mounts: 148” x 134” [3,759 x 3,407 mm]
CRI: 80
Color temperature: 4,000K
A layout of an AirFRAME system in a 3 by 3 array

AF33

AirFRAME configured in a 3 x 3 array

Room volume, 20 ACH: 5,350-7,480 ft³ [151.5-211.5 m³]
Room volume, 25 ACH: 4,280-5,980 ft³ [121.5-169.0 m³]
Diffuser array size: 116” x 92” [2,946 x 2,337 mm]
System outer dims with optional mounts: 172” x 148” [4,369 x 3,759 mm]
CRI: 80
Color temperature: 4,000K
A layout of an AirFRAME system in a 3 by 4 array

AF34

AirFRAME configured in a 3 x 4 array

Room volume, 20 ACH: 6,300-8,820 ft³ [178.5-249.5 m³]
Room volume, 25 ACH: 5,040-7,050 ft³ [143.0-199.5 m³]
Diffuser array size: 116” x 122” [2,946 x 3,099 mm]
System outer dims with optional mounts: 172” x 178” [4,369 x 4,521 mm]
CRI: 80
Color temperature: 4,000K
A layout of an AirFRAME system in a 4 by 3 array

AF43

AirFRAME configured in a 4 x 3 array

Room volume, 20 ACH: 6,300-8,820 ft³ [178.5-249.5 m³]
Room volume, 25 ACH: 5,040-7,050 ft³ [143.0-199.5 m³]
Diffuser array size: 154” x 92” [3,912 x 2,337 mm]
System outer dims with optional mounts: 210” x 148” [5,334 x 3,759 mm]
CRI: 80
Color temperature: 4,000K
Engineering rendering of an LEDiffuser module

LEDiffuser

Modular ducted diffusion with integrated lighting

LEARN MORE
A layout of an LEDiffuser with one opening

LD11

LEDiffuser module with one opening

Room volume, 15 ACH: 795-1,110 ft³ [23.0-31.0 m³]
Room volume, 20 ACH: 595-830 ft³ [17.0-23.5 m³]
System dimensions: 32” x 40” [813 x 1,016 mm]
Finishing trim flange width: 1” [25 mm]
CRI: 80
Color temperature: 4,000K
A layout of an LEDiffuser with two openings

LD12

LEDiffuser module with two openings

Room volume, 15 ACH: 1,590-2,210 ft³ [45.5-62.5 m³]
Room volume, 20 ACH: 1,190-1,660 ft³ [34.0-47.0 m³]
System dimensions: 62” x 40” [1,575 x 1,016 mm]
Finishing trim flange width: 1” [25 mm]
CRI: 80
Color temperature: 4,000K
A layout of an LEDiffuser with three openings

LD13

LEDiffuser module with three openings

Room volume, 15 ACH: 2,380-3,320 ft³ [67.5-94.0 m³]
Room volume, 20 ACH: 1,790-2,490 ft³ [51.0-70.5 m³]
System dimensions: 92” x 40” [2,337 x 1,016 mm]
Finishing trim flange width: 1” [25 mm]
CRI: 80
Color temperature: 4,000K
Closeup of a uLED lighting fixture

uLED

Linear lighting fixtures

LEARN MORE
A rendering of a uLED lighting fixture

ULD4

4' uLED linear lighting fixture

Light output: 4,400 lm
Fixture size: 2” w x 48” l x 3.25” h [51 x 1,219 x 83 mm]
Finishing trim flange width: 1” [25 mm]
Hanging bracket height: 4” [102 mm]
CRI: 80
Color temperature: 4,000K
A rendering of a uLED lighting fixture

ULD8

8' uLED linear lighting fixture

Light output: 8,800 lm
Fixture size: 2” w x 96” l x 3.25” h [51 x 2,438 x 83 mm]
Finishing trim flange width: 1” [25 mm]
Hanging bracket height: 4” [102 mm]
CRI: 80
Color temperature: 4,000K
An AirTUNNEL air handling unit

AirTUNNEL

Air handling units for healthcare

LEARN MORE
A patient lift suspended from an AirFRAME integrated ceiling system

AirLIFT

Integrated safe patient handling systems

LEARN MORE
AirFRAME ceiling system modules in warehouse

Indigo-Clean

Continuous visible light disinfection
